Fuel Bladder Tanks

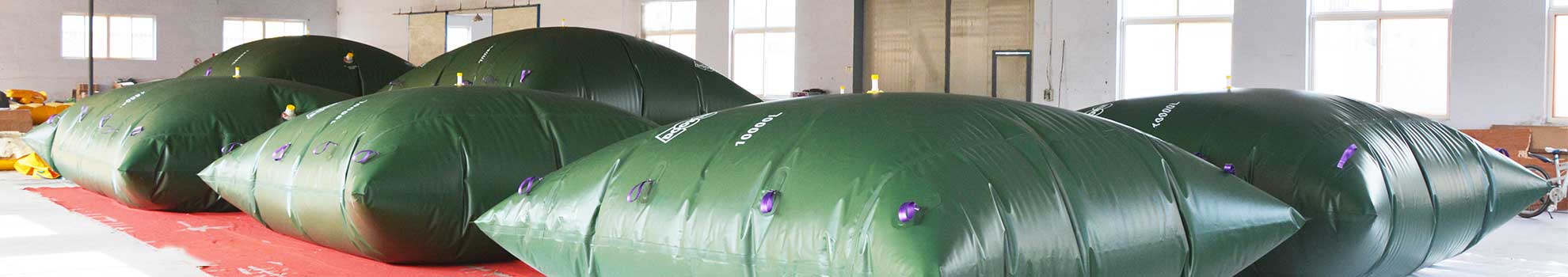

DOOWIN collapsible fuel bladder tanks, known as fuel bladders, are ideal easy fuel storage solution. The collapsible fuel bladder tanks are flat when empty and low profile after filled with fuel. We have small fuel tanks for the easy handle and large durable fuel containers for long-term storage. The biggest capacity can reach 800,000L.
These collapsible fuel bladder tanks are constructed using the supreme heavy-duty TPU coating fabric. The best TPU coating fabrics satisfy the highest demands for store heavy chemical liquid due to their excellent material properties. DOOWIN fuel bladder tanks are built to withstand extreme conditions and provide the highest level of reliability.
Fuel Bladder Tanks Construction
Please refer below general drawing for the small, middle and large fuel bladder tanks.
Inlet Fittings: The standard filling fitting is 2”, 3” and 4” high quality stainless steel flange with stainless steel ball valves and cam-lock with one safety cap. The other material filling port and camlock are available upon request. We also can do aluminum flange and cam-lock, or PP flange and ball valves .
Outlet Fittings: The standard filling fitting is 2”, 3” and 4” high quality stainless steel flange with stainless steel ball valves and cam-lock with one safety cap. The other material filling port and camlock are available upon request. We also can do aluminum flange and cam-lock, or PP flange and ball valves .
Optional: Ground sheet can protect your pillow tanks. It will be supplied upon request.
Fill/Discharge Valve (2” or 3”) Drain Valve (2” or 3”) Air Bleed
Fuel Bladder Tanks Specification
DOOWIN fuel bladder tanks are from 200L to 800,000L. Below you will find our standard specification of fuel bladder tanks. Customized size and shape are available upon request. If you have any special request, please contact us now.
The above size in only for reference. We may change it without notice.
Advantages and Features of Fuel Bladder Tanks
DOOWIN fuel bladder tanks are produced by HF welding technology for the better performance. Donot use glue or hot-air.
- Low profile when filled
- Flat when empty
- UV resistant, oil resistant
- Top notch UV resistance
- Excellent abrasion properties
- Light weight, High strength
- Easy to storage and shipment
- Easy to setup and operate
- Wide range of use
- Wide range capacities up to 800 m3
- Customized shape and size available
- Various filling/discharge fittings
- Supreme oil-resistance
- Barrel end shape available
- Highest quality TPU coating fabric
Innovative HF Welding Technology
DOOWIN pillow tanks use HF welding technology. The HF welding seams have better tensile strength than the hot-air welding seams. It has more stable performance, not easy to separate for long term storage.
Traditional Hot-Air Welding Technology
We abandon the traditional hot-air welding technology. The hot-air welding seams are not persistent. The seam is easy to seperate. Some inferior bladders prefer this welding.
Fuel Bladder Tanks Material
Our collapsible fuel pillow tanks are made of high-quality TPU coating fabric material allow for oil or fuel long-term storage due to their excellent material properties. For long-term storage applications, built to withstand extreme conditions and provide the highest level of reliability.
You also can advise us the time of use, desired chemical resistance and expected mechanical stress. We will make the products meet your requirements.
DOOWIN fuel storage pillow tanks meet the highest quality demands.
- Excellent abrasion properties
- Supreme oil-resistance
- Top notch UV resistance
- Superb fire-resistance
- Cold resistance to -70 ℃
- Ideal for long-term storage
- Reliable and proven material for chemical application
Important Notice: Please don’t always focus on the strength and thickness of fabric material. It is only is one side of good material. The most important point is the PVC/TPU coating formula. It can ensure the material has the best UV resistance, oil resistance, abrasion resistance, fire resistance, and other performance.
Collapsible Fuel Bladder Tanks Application
Our collapsible fuel bladder tanks can store bulk fuel long-term for military, marine, oil fields, remote locations, mining, construction, power station, and other industries.
- Fuel Farms
- Diesel Fuel Storage
- Gasoline Storage
- Emergency Interim Fuel Storage
- Long-term Fuel Storage
- Military Fuel Storage
- Marine Ship Fuel Storage
- Gasoline storage
- Diesel stroage
- JetFuel storage
- AVGAS storage
- Lube oil storage
- Crude oil storage
- Dielectric oil storage
- Hydraulic oil storage
- Mild chemicals storage
FAQ
We use the highest quality TPU coating fabric material. Certificated quality for fuel and chemical long-term storage.
We have material from 0.8mm to 2.0mm for different application. Please donot always focus on the strength and thickness of fabric material. It is only is one side of good material. The most important point is the PVC/TPU coating formula. It can ensure the material have best UV resistance, oil resistance, abrasion resistance, fire resistance and other performance.
We will provide buyers manufacturer certificate free of charge. We also can provide third party certificate upon customer’s request.
We have different design for different storage requirements. There are 3 years, 5 years, 7 years, 10 years design. But it also is based on the application environment.
We provide warranty period for 2 years.
We can make any customized size and shapes. Please feel free to contact us order your own specific water tanks.
